Blog lost: Inflation in the USA. Successor blog: Economics as Classical Mechanics

By mistake, I have removed my two-year-old blog “Inflation in the USA” with about 200 posts. I can not completely recover it. Therefore, this new blog is the successor, and inherits the best posts. I'll keep presenting new results on the evolution of real GDP, productivity, labor force participation, inflation, and unemployment world-wide. The prediction of S&P 500 returns is my major topic as well.
As of now, I will also pay more attention to the presentation of my book on economics with a tentative title ”Economics as Classical Mechanics” or “Mechanomics”. I’ll publish paragraphs and chapters, when ready. As one may see, the title of this blog is relevant to this task.
The purpose of this blog and the book is to present quantiative arguments supporting the predictability of economic evolution as expressed in the macro-variables listed above. Economics is a hard science in terms of the existence of robust links between major measured macroeconomic variabels. It this sense, economics is equivalent to the classical mechanics.
At the same time, I am highly interested in applied research like share and commodity pricing.
Eventually, any post in this blog adds to a working paper or article. So, this blog is a notebook of quantitative research.

Unemployment in Japan above 6% in August

Since the beginning of 2009, unemployment rate in Japan has been on rise. The Statistical Bureau of Japan has just announced a severe increase in (seasonally adjusted) unemployment rate up to 5.2% in May. There was only 4.1% in December 2008.

We have predicted that effect in our early paper [1] and confirmed the prediction in the detailed study of unemployment in Japan [2]. The most recent estimate of the linear link between unemployment rate and the change in labor force level gave the following relationship:


UE(t)= -1.5dLF(t)/LF(t) +0.045 (1)


where UE is the unemployment rate at time t, LF is the level of labor force at the same time. Thus, there is no time delay between the change in the LF and UE, as it observed in many developed countries [3,4].


As with any quantitative prediction of future time series, one can check and validate the underlying relationship using new data. Figure 1 compares the measured unemployment rate in Japan to that predicted from (1). Relevant labor force estimates are also retrieved from the Statistical Bureau's table.



Between 1999 and 2008, the prediction is excellent considering the accuracy of both unemployment and labor force measurements. The deviation between the curves observed in 2008 is the largest. However, it does not influence the accuracy of the 2009 prediction, which is definitely outstanding in terms of dynamic resolution. The dramatic increase in unemployment rate is well predicted by relevant fall in the level of labor force; the slope in (1) is negative. Because of the absence of time delay between these two variables, it is difficult to distinguish between action and reaction. Our previous investigations indicate that the change in labor force in the primary source of the change in unemployment and inflation [3,4].


Figure 1 demonstrates that the rise in unemployment is not finished yet and it may reach 6% in August 2009. Since the labor force estimates are contemporary to the unemployment one, we can not stretch them into 2010. However, labor force projections for Japan show that the unemployment will approach 5% in the long run, as depicted in Figure 2 borrowed from [2].



Figure 1. Comparison of observed and predicted unemployment rate in Japan.

Figure 2. Unemployment rate projection for Japan between 2010 and 2050 [2].

References

[1] Kitov, I., (2006). The Japanese economy, MPRA Paper 2737, University Library of Munich, Germany, http://ideas.repec.org/p/pra/mprapa/2737.html
http://mpra.ub.uni-muenchen.de/2737/01/MPRA_paper_2737.pdf

[2] Kitov, I., (2007). Exact prediction of inflation and unemployment in Japan, MPRA Paper 5464, University Library of Munich, Germany,
http://ideas.repec.org/p/pra/mprapa/5464.htmlhttp://mpra.ub.uni-muenchen.de/5464/01/MPRA_paper_5464.pdf

[3] Kitov, I., (2007). Exact prediction of inflation and unemployment in Germany, MPRA Paper 5088, University Library of Munich, Germany,
http://ideas.repec.org/p/pra/mprapa/5088.html
http://mpra.ub.uni-muenchen.de/5088/01/MPRA_paper_5088.pdf

[4] Kitov, I., Kitov, O., (2009). Unemployment and inflation in Western Europe: solution by the boundary element method, MPRA Paper 14341, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/14341/01/MPRA_paper_14341.pdf

6/28/09

The CPI of transportation revisited

We continue revising our predictions of the CPI subcategories from 2007 [1]. The past twenty months have revealed high turbulence in the behavior of the index for transportation. Here we are going to compare our predictions with actual observations and revise the predictions where appropriate. We have started with the index of food and continue with the index for transportation.
Below is an excerpt from the paper, as devoted to transportation:

“The difference for the transportation index had a longer period of positive slope – between 1980 and 2004, as Figure 11 demonstrates. During this period the difference was evolving at a rate of 1.5 units per year and reached the level of 30 units of index. Currently, a turning period is likely observed and a negative slope is developing. The current period is accompanied by an elevated volatility. The slope for the future linear trend, which is estimated as -1.25 units per year in Figure 12, will be possibly changed in near future but will define the duration of the recovery period for the transportation index. In any case, the prices for goods and services related to the index for transportation, as it defined by the BLS, are very likely to be growing faster than the headline CPI.
Figure 11. The difference between the CPI and the transportation index between 1960 and 2007. Notice two clear periods of practically linear trend: between 1960 and 1980; between 1980 and 2000. Currently, a period of turning to a new trend is observed – the transportation index will be growing faster than the CPI. This turn is accompanied by very high volatility.

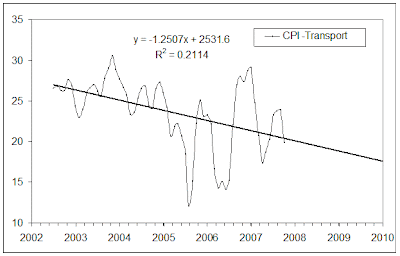

Figure 12. Same as in Figure 11 for the period after 2002. The transportation index likely started to grow faster than the CPI. New linear trend has not finally developed and more volatility might be expected in the housing expenditure category. “


Instead of the difference between the (seasonally adjusted) headline CPI and the index for transportation we inspect the deviation of the transportation index from the core CPI. In 2008, after a short period of increase induced by the spike in oil price, the index for transportation has been decreasing at a very high rate relative to the core CPI, as shown in Figure 1. This was a dramatic drop in the index from 2007 in July to 167 in December. Apparently, it was also caused by the fall in oil price from $149 to $38. Goods and services related to transportation easily lost their pricing power. So, one can assume that that index was driven by an external force.
Since January 2009, the prices index for transportation has been oscillating around the level 170 despite crude oil price almost doubled. Such behavior is difficult to explain but it seems that transportation loses its bounds to oil price. So, it is likely (e.g. this is our working hypothesis) that the difference will eventually return to the old trend, as shown in Figure 2. This process should be accompanied by an intensive growth in the index itself. It should jump in the near future to the level around 200. In the long-run, the difference will reach its turning point somewhere between 2015 and 2020, if our assumption on the presence of long-term sustainable trends is applicable to the index of transportation. If the transportation index returns to the trend, it will be the best validation of our approach.

Figure 1. The difference between core CPI and the index for transportation between 1960 and 2009.
Figure 2. Comparison of the trend predicted in 2007 and that in 2009. Current change in the index for food shifts the new trend towards the old one.
Conclusion
There are several preliminary conclusions about the past and the future of the index of transportation can be derived from Figure 2.
The consumer price index for transportation is sensitive to the changes in the index for energy and crude oil price, but likely the bounds loosen with time.
Since 2008, the index for transportation has been characterized by very high volatility, which currently makes any further prediction unreliable.
The difference between the core CPI and the index for transportation will be likely decreasing in absolute terms by the end of 2009 with a possible stretch into 2010.
The index of transportation itself should increase by ~30 units in the near future.
The difference should return to the long-term trend with the next turning point between 2015 and 2020.

References
1. Kitov, I., Kitov, O., (2008). Long-Term Linear Trends In Consumer Price Indices, Journal of Applied Economic Sciences, Spiru Haret University, Faculty of Financial Management and Accounting Craiova, vol. 3(2(4)_Summ), pp. 101-112.

The CPI of food revisited

In 2007, we predicted the evolution of several consumer price indices relative to core CPI in the USA [1]. The past twenty months have revealed high turbulence in the behavior of such major expenditure subcategories as energy, food, housing, etc. We are going to compare our predictions with actual observations and revise the predictions where appropriate. Here we start with the index of food.
Below is an excerpt from the paper, as devoted to food:

“Figure 7 displays the difference between the core CPI and the index for food for the period after 1960. This curve differs from that in Figure 5. The first large change in the difference occurred in 1973 (not in 1979 as for energy) and lasted only 7 years. Around 1980, the difference started to grow from -7.0 to 13.0 in 1996. Between 1996 and 2003, the difference was effectively constant at the level of ~13.5 units of price index, i.e. a lengthy flat segment was observed. After 2003, the difference has been decreasing at a rate of 1.2 units per year, as Figure 8 demonstrates.
Overall, the difference between the core CPI and the food index was always lower than that between the energy index and the core CPI. The largest difference was only around 14 units. Since 2003, the food price index has been slowly catching up the core CPI. Extrapolating the current linear trend one can estimate the intercept point when the food price index will reach the core CPI. According to Figure 8, this will happen in 2014. Such a behavior differs from that observed for the energy index in terms of timing and amplitude, but the overall behavior distinguishing periods of linear growth and bifurcation is very similar. Therefore, principal mechanisms behind the evolution of the food price index are similar to those behind the energy index. They are likely not related to the changes in supply pressure induced by good crops and draughts. These mechanisms have to be a part of economic system itself and should be related to relationships between economic agent not to production of goods and services.

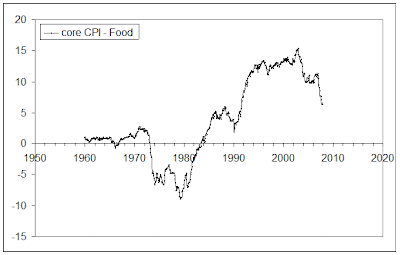

Figure 7. The difference between the core CPI and the index for food between 1960 and 2007. There are three periods of linear trend and two turning periods. The most recent period of linear trend started in 2003.


Figure 8. The difference between the core CPI and the food index between 2002 and 2007. The current period of linear trend will be likely finished in 2014. Since 2003, the food price index has been slowly catching up the core CPI. “


Since 2007, the index for food has been rising at an elevated rate compared to that predicted by the long-term-trend in Figure 8 in the excerpt. Figure 1 displays the difference between the (seasonally adjusted) core CPI and the index for food (beverages not included). A remarkable rally in food prices forced the index for food to grow faster than predicted and the deviation from the trend predicted in 2007 reached ~7 units in 2008. This behavior was likely related to the outstanding rally in oil price finished in July 2008. Correspondingly, almost all prices were driven up. After July 2008, the same prices have been declining at a higher rate sharing the faith of crude oil price. Accordingly, from January 2009, the index for food started to decline in absolute terms at its returning path to the old trend shown by pink line in Figure 1. The current trend, as shown by black line, is far enough from the old one, but the difference has a good speed approaching the pink line.
The pink line intersects the zero line around 2014. The new trend hits the zero line in 2010. Because of the current recovery to the old trend, actual interception should happen somewhere between 2011 and 2014. This interception point will likely to be the turning point to a new trend. Currently, we observe a similar process for the price index of energy. The discrepancy between the turning points for these expenditure categories is of fundamental importance – there are different sets of economic forces behind them.


Figure 1. Comparison of the trend predicted in 2007 and that in 2009. Current change in the index for food shifts the new trend towards the old one.

Conclusion
There are several conclusions about the past and the future of the index for food can be derived from Figure 1.

  • The consumer price index for food is sensitive to the changes in the index for energy and crude oil price.
  • The deviation from the well established trend in the difference between the core CPI and the index for food observed between 2002 and 2007 has been driven by the outstanding rally.
  • The difference between the core CPI and the index for food will be likely increasing in absolute terms by the end of 2009 with a possible stretch into 2010.
  • The index of food itself may be decreasing in absolute terms.
  • The new trend for the index for food will start emerging somewhere between 2011 and 2014. Since the turn to the new trend, the index for food will start to lose its ground relative to goods and services comprising the core CPI. In other word, food will become cheaper in relative terms.

References
1. Kitov, I., Kitov, O., (2008). Long-Term Linear Trends In Consumer Price Indices, Journal of Applied Economic Sciences, Spiru Haret University, Faculty of Financial Management and Accounting Craiova, vol. 3(2(4)_Summ), pp. 101-112.

6/27/09

PPI of copper ores and grains

Lately, we have demonstrated that the evolution of various components of CPI and PPI in the United States is not a random process but rather a predetermined one with long-term sustainable trends [1-4]. Using these trends, one can predict consumer and producer price indices for various goods, services and commodities [5-7]. Moreover, share prices for selected S&P 500 companies are also well described in the past by the differences in the PPI and CPI [8,9]. The near future will test the predictive power of our model.
In [4-7], we presented the evolution many commodities with varying weight in the PPI. But there are many more commodities of interest for producers, consumers, and investors. Here we compare the indices for copper and grain. The evolution of the producer price indices of these two commodities is independent, but both give a good example of the absence of clear sustainable trends. In other words, not every commodity price is predictable, as mentioned in [4].
Figure 1 displays the PPI and the index for copper ores since 1988. The difference of these two indices has a remarkable history; no big change between 1988 and 200, and then a sudden peak in the copper index. The peak survived during three years before 2008, and then the index dropped by 300 units back to the PPI level. Despite the early start in 2005 seems oil independent, the most recent fall looks to be driven by oil price and the overall economic slowdown. In 2009, one can observe a slight increase in the cooper index likely associated with the rise in oil price. In the long-run, oil price should decline to the level of $25 in 2016. Therefore, copper price will likely not be growing to its peak in April 2008 (491.7). In any case, our model based on the presence of sustainable trends in the difference between the PPI and individual PPI is not applicable to copper ores.

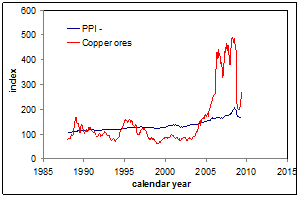

Figure 1. Evolution of the price index of copper ores and the PPI.

The producer price index for grains presents another difficult case. Figure 2 depicts the PPI and the index, and their difference between 1960 and 2009. There is no sustainable trend in the difference as well. Between 1974 and 2005, the difference demonstrated an overall growth with several spikes, the strongest one in 1996. The presence of a long-term positive trend in the difference is completely due to the growth in the PPI because the index for grains fluctuates around a constant line. Lately, the grains index suffered the biggest rise and fall in absolute terms. The main increase started earlier 2007 and stretched into 2008, with the peak in June 2008. Volatility during the past two years was so high that it is difficult to predict the next move of the price index of grains. Seemingly, it has been repeating the trajectory of the index for crude oil in 2008 and 2009. If it is the case, one can expect that the index for grains will continue to oscillate around the constant level of ~100.

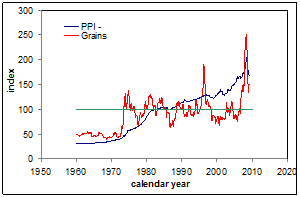

Figure 2. Evolution of the price index of grains and the PPI.

Conclusion
The producer price index for copper and that of grains both demonstrate unpredictable behavior with unclear future. This observation only emphasizes the importance of sustainable trends observed for other commodities. In the US economy, as in many natural systems, there exist trend components, oscillating components, and random components.

References
1. Kitov, I., Kitov, O., (2008). Long-Term Linear Trends In Consumer Price Indices, Journal of Applied Economic Sciences, Spiru Haret University, Faculty of Financial Management and Accounting Craiova, vol. 3(2(4)_Summ), pp. 101-112.
2. Kitov, I., (2009). Apples and oranges: relative growth rate of consumer price indices, MPRA Paper 13587, University Library of Munich, Germany.
3. Kitov, I., Kitov, O., (2009). A fair price for motor fuel in the United States, MPRA Paper 15039, University Library of Munich, Germany,
4. Kitov, I., Kitov, O., (2009). Sustainable trends in producer price indices, Journal of Applied Research in Finance, v. 1, (in press)
5. Kitov, I., Kitov, O., (2009). PPI of durable and nondurable goods: 1985-2016, MPRA Paper 15874, University Library of Munich, Germany
6. Kitov, I., (2009). Predicting gold ores price, MPRA Paper 15873, University Library of Munich, Germany
7. Kitov, I., (2009). Predicting the price index for jewelry and jewelry products: 2009-2016, MPRA Paper 15875, University Library of Munich, Germany
8. Kitov, I., Kitov, O., (2009). Predicting share price of energy companies: June-September 2009, MPRA Paper 15863, University Library of Munich, Germany
9. Kitov, I., Kitov, O., (2009). Modelling selected S&P 500 share prices, MPRA Paper 15862, University Library of Munich, Germany



6/26/09

Crude oil will reach $100 by December 2009

Introduction
The change in producer and consumer prices has been always a concern for all stock market participants. Lately, we have demonstrated that the evolution of various components of CPI and PPI in the United States is not a random process but rather a predetermined one with long-term sustainable trends [1-4]. Using these trends, one can predict consumer and producer price indices for various goods, services and commodities [5-7]. Moreover, share prices for selected S&P 500 companies are also well described in the past by the differences in the PPI and CPI [8,9]. The near future will test the predictive power of our model.
In [1,3], we gave a prediction of the index for energy as a proxy of crude petroleum price. In [5-7], we developed a technique to describe the evolution of producer prices for gold, jewelry, durable and nondurable goods. So, there was no direct prediction of crude oil price. This paper fills this gap.

1. The model
The model derived in [4] implies that the difference between the headline PPI, PPI, and the index for crude petroleum, cpPPI, can be described by a linear time function over time intervals of several years:
PPI(t) – cpPPI(t) = A + Bt (1)
where A and B are empirical constants, and t is the elapsed time. Therefore, the “distance” between the PPI and the studied index is a linear function of time, with a positive or negative slope B. Figure 1 displays this difference between 1985 and 2009. There are two distinct periods of linear dependence on time: from 1988 to 2000, from 2001 to 2008. There was one transition period between 2000 and 2001, where the trends undergo changes. This turning point was characterized by an elevated volatility. Since 2008, the difference has been also passing a turning point with very high volatility caused by the uncertainty in the characteristics of the following trend.
Figure 1 presents quantitative parameters of the linear trends. Between 1988 and 2000, the difference was growing at a rate of B=+2.0 units per year. Between 2001 and 2008, the difference underwent a rapid fall at a rate of B=-21 units per year. Both trends are reliable ones with a high goodness-of-fit.
A fundamental feature of the difference consists in the fact that all deviations from the trends were only short-term ones. This implies that the current or future deviations from the new trend, which has been under development since 2008, must be rapidly compensated. This feature allows a short-term (months) price prediction.

Figure 1. Illustration of linear trends in the difference between the headline PPI and the producer price index for crude petroleum (domestic production) in the U.S. There are two quasi-linear segments with a turning point near 2000. Currently, the difference passes second transition period. Two linear trends with relevant linear regression lines and corresponding slopes are also shown.

2. Price prediction
Having relationship (1) which describes the evolution of the studied difference one can easily predict its short- and long-term evolution. Figure 2 depicts the time history of the PPI and the index for crude petroleum. The PPI curve is smoother because it represents a weighted average of all commodities. The curve for crude petroleum has several peaks, but that in 2008 is by far the largest in absolute terms. Our purpose is to continue both curves in line with their long-term and short-term behavior in the past.
Since 2008, the new linear trend has been emerging. At this point, it is difficult to accurately estimate the rate of future growth. A naive assumption is that the following period will be a “mirror reflection” of the previous one. Therefore, the new slope should be the same as the old one but with opposite sign. Figure 1 shows the new trend by solid green line – the difference will grow from -55 in 2008 to +80 in 2016. In Figure 2, we split the difference into its component: the PPI will be growing with an annual increment of +2 units [10-12] and the index of crude petroleum will be decreasing by 19 units per year. This makes the slope B=+21. Therefore, the price for crude oil will be falling between 2010 and 2016. The start level is 190 units for both indices. Similar prediction has been already done for the index of motor fuel [3].

Figure 2. Evolution of the price index for crude petroleum and the PPI.

The difference curve in Figure 1 is not a straight line, however. Both observed trends are the gravity lines for the actual curve, but deviations from the trends have large amplitudes. Good news is that they are also back to the trends. This property allows a short-term prediction. Figure 3 displays the past five years. The largest ever deviation from the trend started in the beginning of 2008. One would guess that the uncertainty of the future behavior of crude price caused an euphoria among market players …, which quickly mutated into panic in the end of 2008. Accordingly, the price high-rocketed to ~$150 and then did not returned to the new trend but dropped to ~$40. In physics, such process would be called “dynamic overshoot”. One can also use the term rebound.
What can we say about the near future of the difference after May 2009, i.e. the last point currently available? A reasonable assumption of the next move in the difference is shows by red diamond – the curve will follow its natural motion down to the new trend and, after intersection of the red line, the difference will continue its way down. What will be the rate of rise in the index of crude petroleum? This is a big question. We assumed +20 units per month till the end of 2009, i.e. the index will grow from 157 in May to 297 in December. It is worth noting, that there is a trade-off between the rate of growth and the duration of the growth – if the rate is higher the duration is shorter. One can draw own line between June and December.

Figure 3. The difference between the PPI and the index for crude petroleum. Red diamonds predict the evolution of the difference between June and December 2009. Total increase in the difference is -140 units of index Solid red line represents the “mirror” trend for that between 2002 and 2008, which is shown by solid black line.

Finally, what will be crude petroleum price by the end of 2009? One can easily convert price indices into real prices. We used a conversion factor of 2.65, which corresponds to $145 per barrel in July 2008 and the index of 384.3. The price for June 2009 is $66.8 with the index of 177. Crude price in December is at $112. This is our best prediction using the assumption of the index growth. The price might be reached earlier or later depending of rate of growth. The absolute value of $112 also can also be higher or lower depending on the amplitude of the overshoot in the second part of 2009.


Figure 4. The evolution of crude petroleum (domestuic production) price. Between June and December 2009 the price will rise from $66 to $112 per barrel.


Conclusion
The price index for crude petroleum (domestic production) in the USA should grow by ~45% between June and December 2009 – from $66 to $112. Our simple model suggests a constant price increment over months, but actual monthly growth might not be even. In any case, the total price increase in 2009 should compensate the fall in 2008 and demonstrate some price “overshoot” relative to the trend line, i.e. the price will rise above the trend.
It is likely that the price index for crude petroleum will be decreasing in absolute terms approaching the level of 60 units in 2016. This corresponds to $22 per barrel.

References
1. Kitov, I., Kitov, O., (2008). Long-Term Linear Trends In Consumer Price Indices, Journal of Applied Economic Sciences, Spiru Haret University, Faculty of Financial Management and Accounting Craiova, vol. 3(2(4)_Summ), pp. 101-112.
2. Kitov, I., (2009). Apples and oranges: relative growth rate of consumer price indices, MPRA Paper 13587, University Library of Munich, Germany.
3. Kitov, I., Kitov, O., (2009). A fair price for motor fuel in the United States, MPRA Paper 15039, University Library of Munich, Germany,
4. Kitov, I., Kitov, O., (2009). Sustainable trends in producer price indices, Journal of Applied Research in Finance, v. 1, (in press)
5. Kitov, I., Kitov, O., (2009). PPI of durable and nondurable goods: 1985-2016, MPRA Paper 15874, University Library of Munich, Germany
6. Kitov, I., (2009). Predicting gold ores price, MPRA Paper 15873, University Library of Munich, Germany
7. Kitov, I., (2009). Predicting the price index for jewelry and jewelry products: 2009-2016, MPRA Paper 15875, University Library of Munich, Germany
8. Kitov, I., Kitov, O., (2009). Predicting share price of energy companies: June-September 2009, MPRA Paper 15863, University Library of Munich, Germany
9. Kitov, I., Kitov, O., (2009). Modelling selected S&P 500 share prices, MPRA Paper 15862, University Library of Munich, Germany
10. Kitov, I. (2006). Inflation, unemployment, labor force change in the USA, Working Papers 28, ECINEQ, Society for the Study of Economic Inequality
11. Kitov, I., (2006). Exact prediction of inflation in the USA, MPRA Paper 2735, University Library of Munich, Germany
12. Kitov, I., Kitov, O., Dolinskaya, S., (2007). Inflation as a function of labor force change rate: cointegration test for the USA, MPRA Paper 2734, University Library of Munich, Germany


6/20/09

Predicting share price of energy companies: June-September 2009

We predict that XOM, COP, DVN, CVX, and HAL share prices will grow between June and September 2009 from $15 (HAL) to $30 (DVN). The prediction has a format of working paper. This post is the second step in a standard process - from idea to publication. The first step, fresh analysis, was presented in our previous post.
DRAFT
Abstract
Previously, we have revealed the presence of a reliable linear dependence between share prices of energy-related companies and the difference between CPI and core CPI: any change in share prices is transmitted into a proportional change in this difference two and half months later. The difference itself is characterized by sustainable trends reigning over seven to twenty-year intervals. As a result, the link between the share prices and the difference allows predicting the former over longer intervals. Since mid-2008, the previously observed trend has been undergoing a transition to a new trend. Accordingly, one may formulate two principal problems: “What is the dependence between share price and CPI during the transition?” and “When and how can one determine the properties of the new trend?” Currently available information on the CPI allows predicting the share prices between June and September 2009.
Key words: COP, CVX, DVN, HAL, XOM, prediction, share price, CPI
JEL classification:

Introduction
Kitov and Kitov (2009b) revealed the presence of a reliable linear dependence between share prices of energy-related companies (Exxon Mobile and ConocoPhillips) and the difference between CPI and core CPI. Essentially, any change in share prices is transmitted into a proportional change in this difference two and half months later. The difference itself is characterized by sustainable trends reigning over seven to twenty-year intervals. As a result, the link between the share prices and the difference allows predicting the former over longer intervals. Since mid-2008, the previously observed trend has been undergoing a transition to a new trend, which we predicted in 2007 (Kitov, Kitov, 2008). Accordingly, one may formulate two principal problems: “What is the dependence between share price and CPI during the transition?” and “When and how can one determine the properties of the new trend?” Currently available information on the CPI allows predicting the share prices between June and September 2009.
We have also estimated empirical coefficients of the linear relationship for five S&P 500 energy companies: ConocoPhillips, Chevron, Devon Energy, Halliburton, and Exxon Mobil (Kitov, Kitov, 2009c). In general, bigger companies reveal the same slope B between -5.5 and -6.0 for the period from 1999 to 2009. DVN showed a larger (in absolute terms) slope of -7.7, and HAL the smallest slope -3.5. This finding indicates that DVN is likely of a higher efficiency in converting oil price, i.e. cCPI-CPI, into the share price. HAL was and is a less efficient company in sense of usage of the rally in oil price since 2002.
The most recent trend likely found its end in 2008. Therefore, a period of transition to a new trend has started. This observation raises many questions about the properties of the transition period itself and the next trend in particular: Where does the old trend fade away? Is the transition period characterized by a (nonlinear?) relation different from (1)? When does the new trend emerge? Is it possible to estimate the slope of the new trend when the old trend disappears?
In this paper we give preliminary answers to some of the above questions. For any researcher, it is exciting to be inside an unfolding time history and be able to predict the short-term evolution of measured variables, especially if these variables are considered as fundamentally unpredictable ones. Something is at stake.

1. The model
Share prices (sp) of energy companies showed an excellent relation to the difference between core CPI (cCPI) and headline CPI (CPI) in the USA. We have studied five companies of different size: XOM, COP, CVX, DVN, and HAL. The principal result of our share price modelling is that the price is represented by a linear function of the difference:

sp(t-t1) = A + B[cCPI(t) – CPI(t)] (1)

where A and B are empirical constants, t1 is the time lag of the CPI behind the change in the share price. The slope B is of particular importance because its absolute value depends on the rate of growth of the difference.
So, the pricing model (1) assumes the presence of a linear link between a share price and the difference between the core and headline CPI, with the former index excluding energy- related goods and services. The intuition behind the model is simple; a higher pricing power of goods and services associated with energy, and thus with energy companies, is expressed in a faster increase in corresponding index. In the first approximation, the deviation between appropriate price indices is proportional to the ratio of pricing powers of related companies. However, one should be very careful in selecting appropriate indices: it was found that the index for energy itself does not explain the evolution of share prices of corresponding companies. The change in energy price influences the share prices through longer chains which include price reaction of many goods and services.
So far the pricing model (1) is worthless because these are the share prices what drive the CPI. (As shown in Section 2, the change in share prices of energy-related companies leads the CPI by two and a half months, i.e. t1=2.5 months.) Therefore, the model can not work without the crucial observation of the presence of sustainable (linear or nonlinear) trends in the differences. This phenomenon was found and reported in (Kitov, Kitov, 2008; Kitov, Kitov, 2009ab). It allows the prediction of the evolution of the differences, and thus the deviation between prices for corresponding goods and services. Apparently, is the difference evolves along a long-term trend the share prices must follow the same trend according to (1).
So, there exist sustainable (linear and nonlinear) trends in the differences between various subcategories of consumer (and producer) price indices. We consider the sustainability as an equivalent to the possibility to describe such trends by simple functions of time. Figure 1 shows that the difference between the core CPI, cCPI, and the headline CPI, CPI, can be approximated by a simple time function:

dCPI(t) = a + bt (2)

where dCPI(t) is the difference, a and b are empirical constants, and t is the elapsed time. Between 1981 and 1999, the trend has a slope +0.67, and from 2002 to 2008 the slope is -1.62. Hence, the “distance” between the core CPI and the headline CPI is a linear function of time; with a positive or negative slope b. It might be of fundamental importance that absolute value of the ratio of slopes is inversely proportional to the ratio of durations: │0.67/(-1.62)│≈7/19. It such a trade-off actually exists one can predict the duration of the next trend from its slope. This observation needs a deeper investigation.
Initially, we used the seasonally adjusted (SA) consumer price indices (Kitov, Kitov, 2009b). The core and headline (SA) CPI difference explained well observed share prices. However, we had no intention to match fine details of predicted and observed curves – just peaks and troughs. In this paper we predict the share prices at short time horizons of several months. Accordingly, we carried out a small investigation and found that the not seasonally adjusted indices are superior to the adjusted ones in the share price prediction. Indeed, the SA indices contain information about prices for goods and services for five previous years. This information is irrelevant to current share prices and thus the prediction using (1) is biased. As before, we have retrieved all (monthly adjusted for dividends and splits) share prices from http://finance.yahoo.com/ and the CPI monthly readings from http://www.bls.gov/data/.
Empirical constants in (1) have to be determined for all distinct periods with different trends. This implies the possibility of structural breaks in relationship (1) caused by turns to new trends. In this study, we are focused on the most recent trend from 2002 to 2008 and the following transition period. So, empirical constants in (1) for the five companies were determined with a higher accuracy and thus may differ from those determined in our previous paper (Kitov, Kitov, 2009c).

Figure 1. The difference between the not seasonally adjusted core CPI (cCPI) and the headline CPI (CPI) from 1980 to 2010. There are two distinct periods from 1981 to 1999 and from 2002 to 2008, where the growth in the difference can be accurately approximated by linear functions of time with slopes +0.67 and -1.62, respectively. Notice that absolute value of the ratio of slopes is inversely proportional to the ratio of durations: │0.67/(-1.62)│≈7/19. The prediction for the period between June and November 2009 is shown by red circles.

2. Predicting share price between June and September 2009
Relationship (1) implied a direct causality – the share prices affect the CPI and its components with some time lag, t1>0. This direction of causality is obvious. As discussed in Section 1, one can also predict the evolution of share prices using (1) because of the presence of long-term sustainable trends. In other words, when a new trend emerges one can link given share prices to the evolution of cCPI-CPI over the whole period where the trend exists. Two previously observed periods were between 1982 and 1999 and between 2001 and 2009, i.e. 19 years and 8 years. So, when the slope of the most recent trend became clear one could forecast several years ahead. Moreover, since the trend was negative, a working assumption on the next turning point could be related to the intersection with the zero line. We used this assumption predicting the turn in the middle of 2008 (Kitov, Kitov, 2008).
It is likely that we are currently in the middle of a transition period and new trend has not emerged yet. To investigate principal properties of the transition process we begin with the illustration of the previous change in trend. Figure 2 displays the actual COP (monthly close, adjusted for splits and dividends) share price and that predicted according to (1) with empirical coefficients A=80 and B=-6.0 estimated for the period between April 1998 and May 2009. The observed and predicted share prices diverge before March 1998. The trend before 1998 is defined by empirical coefficients A=-8 and B=2.5. It is important that before 2000 the perdition obtained for the earlier period does not deviate much from that with the coefficients for the later period. Thus, one cannot distinguish between two sets of coefficients and the transition period has a dualistic properties – either of the two sets provides a good prediction. This answers the question about the relationship valid for the transition period – it is linear and does not differ from that for the evolution along trends.

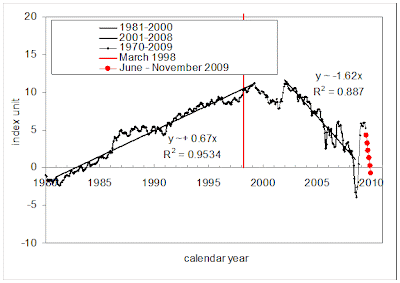

Figure 2. The transition between two periods with different constants A and B in relationship (1) in March 1998.

What are the properties of the dCPI during the transition period? Figure 1 depicts the difference between the core CPI and headline CPI between 1980 and 2010, with the vertical red line corresponding to March 1998. There was no dramatic change in the difference around 1998 except a slight increase in slope in the late 1997. It is possible that the transition period started in the late 1997 and lasted till 2000. Arbitrary, we have chosen relationship (1) with A=80 and B=-6.0 to reign since March 1998. All in all, one can conclude that the transition was not associated with any visible change in the behavior of the cCPI-CPI except the segment with a higher volatility between 1999 and 2001. Same behavior in expected during the current transition period – one can not distinguish between the old and new sets of coefficients in (1), but volatility in the difference and the share prices is high.
Having the pricing model (1) with preliminary empirical coefficient for the period between 2002 and 2008 for all five energy companies (Kitov, Kitov, 2009c), we are now interested in quantitative evaluation of the performance of (1) since July 2008. Another major task is to determine coefficients for the new trend and predict the share prices at a several months horizon using the difference dCPI. Figure 1 shows our best guess about the future of the difference. Solid red circles present a reasonable continuation of the quasi-sinusoidal oscillation started in January 2008. In July 2008, i.e. 6 months later, the oscillation reached its minimum and started a half period of quick growth. The difference reached its maximum in January 2009 and has been hovering around the peak since then. The first move down was recorded in May 2009. It is likely that the difference will be falling with acceleration during the next several months in order to close the full period and start a new one. Quantitatively, we presume that the difference will be decreasing by one init of index per month during the next 6 months, i.e. in will fall from 5.3 in May to -0.7 in November 2009. Considering the rate of growth in the second half of 2008, it seems to be a conservative estimate.
Figures 3 through 7 compare the observed share prices of the five companies and those obtained by trial-and-error method with visual fit using (1). All predicted curves, i.e. scaled dCPI, are shifted by 2.5 months ahead in order to synchronize them with the observed curves. This implies that share prices are converted into consumer prices with a delay of 2.5 months. Since the dCPI is extrapolated into the second half of 2009, we obtain the share price prediction for the period between June and September 2009. In turn, the share prices provide a prediction of the dCPI for the next two months.
Relationship (1) with coefficients A=75 and B=-5.5 describes the evolution of the ConocoPhillips share price between 1998 and 2009 relatively well, as Figure 3 depicts. The period after July 2008 deserves a special attention. The share price dropped from $91.0 to $37 in January. The difference followed the price up. After several months of the absence of any significant moves in the price, June 2009 may be the pivot point to growth. In May 2009, however, the price suffered a small decline instead of growth. Such and even bigger deviations were observed in the past as well. If the dCPI will be decreasing according to its prediction in Figure 1, the COP price will rise to $79 in September. It is worth noting that one could obtain a better prediction for the period after 2007 using different coefficients A and B. However, the overall fit between 1998 and 2009 is a more important constraint for the pricing model.

Figure 3. Observed and predicted COP share price. The predicted curve is shifted 2.5 months ahead in order to synchronize it with the observed one.

Figure 4 displays the observed and predicted share price for Chevron. Empirical coefficients were also estimated by matching the curves over the entire period shown in the Figure: A=83 and B=-5.5. Despite a good overall resemblance, the 2008 fall is overestimated - $50 instead of $60 close price in January. On the other hand, in line with our prediction Chevron demonstrates a positive price dynamics since January 2009. The months between June and September will be important for testing of the pricing model. Bearing in mind the linear trend in the dCPI between 2002 and 2008, the CVX model would be excellent if obtained in 2003.
The next company is Devon Energy Corporation, which showed the best performance between 1998 and 2009 in terms of “transmission” of the dCPI into share price (Kitov, Kitov, 2009c). In this study, we have corrected the previously estimated coefficients: A from 97 to 93, and B from -7.7 to -7.5. In spite of several sharp deviation between the observed and predicted curves (e.g. August-November 2006) DVN is the best modelled company among the five, as Figure 5 demonstrates. There is striking resemblance during the transition period. Moreover, the DVN share price has been on an upward trend since March 2009 as predicted by the dCPI. We expect this growth to stretch into the whole second half of 2009.
Figure 6 presents the case of Halliburton. Empirical coefficients, A=38 and B=-3.0, are slightly different from those obtained before. HAL share price has been growing at a lower (about a half) rate relative to other energy companies in this study. In other words, a one unit decrease in the dCPI was converted into $3 increase in HAL share price, when DVN received a $7.5 increase. However, the pricing model for HAL is a robust one, especially after 2008. It accurately predicts the rise to $52.2 in May 2008, the drop to $16 in January 2009, and the start of a new rise in March 2009.



Figure 4. Observed and predicted CVX share price. The predicted curve is shifted 2.5 months ahead in order to synchronize it with the observed one.

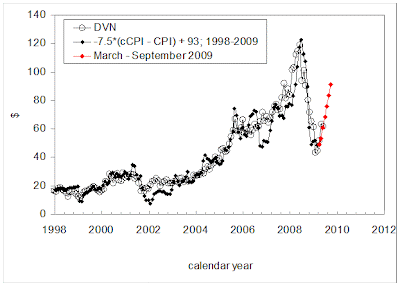

Figure 5. Observed and predicted DVN share price. The predicted curve is shifted 2.5 months ahead in order to synchronize it with the observed one.

Exxon Mobil is the biggest corporation comprising ~4.3% of the S&P 500 index. Therefore, one could expect that its share price might be less sensitive to short-term variations in the dCPI. Figure 7 supports this assumption. XOM share price showed much lower variations since 2008 than those predicted by the pricing model with A=90 and B=-6.0. Nevertheless, the long-term behavior is well predicted between 1998 and 2009. We expect the price to grow into September 2009.

Figure 6. Observed and predicted HAL share price. The predicted curve is shifted 2.5 months ahead in order to synchronize it with the observed one.

Figure 7. Observed and predicted XOM share price. The predicted curve is shifted 2.5 months ahead in order to synchronize it with the observed one.

Conclusion

These are preliminary findings:

  • All share prices still obey (with varying accuracy) the empirical relationships obtained for the previous period.
  • If the difference between the core and headline CPI will be decreasing between June and November 2009, the share prices will be proportionally growing, with the DVN share at most intensive rise.
  • DVN has been demonstrating the highest effectiveness of the conversion of the dCPI into its share price. In 2008, this effectiveness had a slight negative effect – the deepest fall in the share price. Among all studied companies, the observed DVN price in the best modelled.
  • XOM is the most conservative company. It had the smallest rise in price during the 2007-2008 rally and the smallest fall in 2008.
  • The change in HAL share price leads that for other companies by 0.5 months. It might be of usage for short-term investors. However, the price has been falling with a slight overshoot in 2008-2009, i.e. below the level predicted by the pricing model. It might be an indication of the transition to the new relationship as well.
  • CVX is also a reliable company with the price fell less than predicted.
  • The predicted price of COP share fits the observed one over the entire period.
  • Potentially, one might be interested in finding a better pair of CPI components instead of the core and headline CPI in order to optimize the prediction.

References
Kitov, I., (2009). ConocoPhillips and Exxon Mobil stock price, Journal of Applied Research in Finance, vol. 2(2) (in press)

Kitov, I., Kitov, O., (2008). Long-Term Linear Trends In Consumer Price Indices, Journal of Applied Economic Sciences, Spiru Haret University, Faculty of Financial Management and Accounting Craiova, vol. 3(2(4)_Summ), pp. 101-112.

Kitov, I., Kitov, O., (2009a). A fair price for motor fuel in the United States, MPRA Paper 15039, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/15039/01/MPRA_paper_15039.pdf

Kitov, I., Kitov, O., (2009b). Sustainable trends in producer price indices, Journal of Applied Research in Finance, vol. 1(1) (in press)

Kitov, I., Kitov, O., (2009c). Comparative modelling of selected S&P 500 share prices: IBM, DOV, PG, DD, APD, CVX, DVN, and HAL, (in preparation)

6/19/09

College tuition vs. Medcare

An interesting post by Erica Alini at Real Time Economics:

Is Higher Education the Next Big Bubble?

We have been looking at the evolution of various components of CPI in the USA relative to the headline CPI itself. The college tuition and fees have been by far more powerful in price setting than medical care. Figure below demonstrates that the index for college tuition has increased by about 385 points relative to the CPI and the index for medcare by only ~160. Moreover, the index for tuition obtained an additional acceleration in 2001 as the slope increased. The index for medcate has practically the same slope or "relative pricing power".

It is likely that the index for tuition will gain another portion of pricing power after this recession as it happened twice already. One can see in the Figure below that the slope in the difference between CPI and the index for tuition has been increasing again since the mid-2008.

So, Erica Alini is likely right.

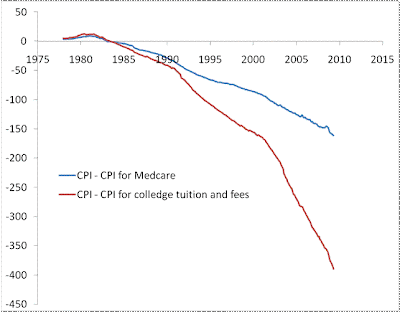

Figure 1. The difference between the headline CPI and the index for medical care (blue) and the index for college tuition and fees (red).

Boundary elements method and inflation

This is a mechanical paper with the method of boundary elements applied to an economic problem - price inflation. Labor force level is the Green's function for inflation and unemployment in developed countries. Econometrics is represented by cointegration tests.
Original working paper is available at RePEc:
Abstract
Using an analog of the boundary element method in engineering and science, we analyze and model unemployment rate in Austria, Italy, the Netherlands, Sweden, Switzerland, and the United States as a function of inflation and the change in labor force. Originally, the model linking unemployment to inflation and labor force was developed and successfully tested for Austria, Canada, France, Germany, Japan, and the United States. Autoregressive properties of neither of these variables are used to predict their evolution. In this sense, the model is a self-consistent and completely deterministic one without any stochastic component (external shocks) except that associated with measurement errors and changes in measurement units. Nevertheless, the model explains between ~65% and ~95% of the variability in unemployment and inflation. For Italy, the rate of unemployment is predicted at a time horizon of nine (!) years with pseudo out-of-sample root-mean-square forecasting error of 0.55% for the period between 1973 and 2006. One can expect that the unemployment will be growing since 2008 and will reach ~11.4% [±0.6 %] near 2012. After 2012, unemployment in Italy will start to descend.

Key words: unemployment, inflation, labor force, boundaryelements method, prediction, Western Europe
JEL classification: J64, J21, J11, E24, E31
Introduction
Current discussions on the rate of unemployment as an economic phenomenon and those on modern versions of the Phillips curve, where unemployment plays a crucial role as one of defining parameters, in particular have been rapidly growing since the early 1960s. There is an extensive set of empirical findings and models exploring various assumptions on the forces behind unemployment. There was no unique and comprehensive model for developed countries, however, which could explain all or part of observations relevant to the level and evolution of the portion of people in labor force but without job.
We have constructed and tested an alternative model linking inflation and unemployment in developed countries to the change rate of labor force by linear and lagged relationships. Our model is a completely deterministic one with the change in labor force being the only driving force causing all variations in the indissoluble pair unemployment/inflation, i.e. the reaction in unemployment and inflation lags behind the change in labor force. The model is somewhat orthogonal to conventional economic models and concepts. In its original form, the model was revealed and formulated for the United States (Kitov, 2006a). After the correction for known breaks in labor force data, a revised model (Kitov, 2006b) allowed a significant improvement on the original one with the root-mean-square forecasting error (RMSFE) of inflation at a 2.5 year horizon of 0.8% between 1965 and 2004. Because of well-known non-stationary of all involved variables, the model was tested for the presence of cointegrating relations (Kitov, Kitov, Dolinskaya, 2007a). Both, the Engle-Granger (1987) and Johansen (1988) approaches have shown the existence of cointegration between unemployment, inflation and the change in labor force, i.e. the presence of long-term equilibrium (in other words, deterministic or causal) relations. Because the change in labor force drives the other two variables, it can be a stochastic process.
The first attempt to obtain empirical models for West European countries (Kitov, 2007a) also provided strong support to the model. In France, it was found that forecasting horizon for inflation is four years, i.e. the change in labor force leads inflation by four years. Unemployment in France also leads inflation by four years, and various cointegration tests (Kitov, Kitov, Dolinskaya, 2007b) showed the existence of long-term equilibrium relations between the three variables. In Austria, the change in labor force and the pair unemployment/inflation is synchronized in time. For Austria, it was found that the break in units of measurement around 1987 requires the change in coefficients in linear lagged relationships.
In continuous efforts to extend the set of countries demonstrating the presence of a causal link between the change in labor force, inflation and unemployment, we have build empirical models for the second and third largest economies in the world – Japan (Kitov, 2007b) and Germany (Kitov, 2007d). Surprisingly, the model for Canada (Kitov, 2007c), which has the United States as the largest trade partner, is also an accurate and reliable one, demonstrating the independence of unemployment and inflation on external factors.
It is important to use the rate of growth not increment as a predictor in order to match dimension of inflation and unemployment, which are defined as rates as well. An implicit assumption of the model is that inflation and unemployment do not depend directly on parameters describing real economic activity (Kitov, 2006a). Moreover, inflation does not depend on its own previous and/or future values because it is completely controlled by a process of different nature.
The principal source of information relevant to this study is the OECD database (http://www.oecd.org/) which provides comprehensive data sets on labor force, unemployment, GDP deflator (DGDP), and CPI inflation. In several cases, national statistical sources and the estimates reported according to definitions adopted in the United States are used for obtaining original data on inflation and corroborative data on unemployment and labor force. In some cases, readings associated with the same variable but obtained from different sources do not coincide. This is due to different approaches and definitions applied by corresponding agencies. Diversity of definitions is accompanied by a degree of uncertainty related to methodology of measurements. For example, figures related to labor force are usually obtained in surveys covering population samples of various sizes: from 0.2 per cent to 3.3 per cent of total population. The uncertainty associated with such measurements cannot be directly estimated but it certainly affects the reliability of empirical relationships between inflation and labor force.
We often use the term accuracy” in this study. When using it, we rather refer to some estimated uncertainty of measurements than to the difference between measured and true values, i.e. to standard definition of accuracy. This uncertainty might be roughly approximated by variations in a given parameter between consequent revisions or between different agencies. Survey reported uncertainties are just a formal statistical estimate of the internal consistency of measurements. However, population related variables could be potentially measured exactly because they are countable not measurable. In any case, the discrepancy between values predicted by models and corresponding measurements has to be considered in the light of the measurement uncertainty.
The reminder of the paper is organized in four sections. Section 1 formally introduces the model as obtained and tested in previous studies. In many countries, the US and Japan among others, the generalized link between labor force and two dependent variables can be split into two independent relationships, where inflation apparently does not depend on unemployment. However, in few countries, a striking example is France, only the generalized model provided an adequate description of the evolution of both dependent variables since the 1960s.
Section 2 introduces the method of cumulative curves for the solution of the model equations. The proposed method is similar to the method of boundary elements in science and engineering because it is based on the conversion of original differential equations into a set of integral equations. The advantage of our method consists in the availability of an exact solution of the problem. It is shown that the cumulative curves method is a superior one to cointegration tests in obtaining long-term equilibrium relations between the studied variables. For example, the difference between measured cumulative curves for inflation in the United States and France and that predicted from the change in labor force, which are both proven I(2) series, is an I(0) process! This feature undoubtedly demonstrates that the link between labor force and inflation is a causal one.
Empirical models for the evolution of unemployment and/or inflation in Italy, the Netherlands, Sweden, and Switzerland are presented in Section 3. These countries significantly enlarge the set of West European countries modelled so far: Austria, Germany, and France. The previously considered case of Austria has been revisited using different data sets and extended to 2007, compared to 2003 in the original version. We also update the prediction of unemployment in the United States. Section 4 concludes.

The model
As originally defined by Kitov (2006a), inflation and unemployment are linear and potentially lagged functions of the change rate of labor force:

π(t) = A1dLF(t-t1)/LF(t-t1) + A2 (1)
UE(t) = B1dLF(t-t2)/LF(t-t2) + B2 (2)

where π(t) is the rate of price inflation at time t, as represented by some standard measure such as GDP deflator (DGDP) or CPI; UE(t) is the rate of unemployment at time t, which can be also represented by various measures; LF(t) is the level of labor force at time t; t1 and t2 are the time lags between the inflation, unemployment, and labor force, respectively; A1, B1, A2, and B2 are country specific coefficients, which have to be determined empirically in calibration procedure. These coefficients may vary through time for a given country, as induced by numerous revisions to the definitions and measurement methodologies of the studied variables, i.e. by variations in measurement units.
Linear relationships (1) and (2) define inflation and unemployment separately. These variables are two indivisible manifestations or consequences of a unique process, however. The process is the growth in labor force which is accommodated in developed economies (we do not include developing and emergent economies in this analysis) through two channels. First channel is the increase in employment and corresponding change in personal income distribution (PID). All persons obtaining new paid jobs or their equivalents presumably change their incomes to some higher levels. There is an ultimate empirical fact, however, that PID in the USA does not change with time in relative terms, i.e. when normalized to the total population and total income (Kitov, 2009b). The increasing number of people at higher income levels, as related to the new paid jobs, leads to a certain disturbance in the PID. This over-concentration (or “over-pressure”) of population in some income bins above its “neutral” long-term value must be compensated by such an extension in corresponding income scale, which returns the PID to its original density. Related stretching of the income scale is the core driving force of price inflation, i.e. the US economy needs exactly the amount of money, extra to that related to real GDP growth, to pull back the PID to its fixed shape. The mechanism responsible for the compensation and the income scale stretching, should have some positive relaxation time, which effectively separates in time the source of inflation, i.e. the labor force change, and the reaction, i.e. the inflation.
Second channel is related to those persons in the labor force who failed to obtain a new paid job. These people do not leave the labor force but join unemployment. Supposedly, they do not change the PID because they do not change their incomes. Therefore, total labor force change equals unemployment change plus employment change, the latter process expressed through lagged inflation. In the case of a "natural" behavior of the economic system, which is defined as a stable balance of socio-economic forces in the society, the partition of labor force growth between unemployment and inflation is retained through time and the linear relationships hold separately. There is always a possibility, however, to fix one of the two dependent variables. Central banks are definitely able to influence inflation rate by monetary means, i.e. to force money supply to change relative to its natural demand. For example, the Banque de France predefines a strict percentage growth rate of monetary aggregate M2 when formulating its monetary policy (BdF, 2004). Such a violation of natural, i.e. established over decades, economic behavior should undoubtedly distort the partition of the change in labor force – the portion previously accommodated by inflation would be redirected to unemployment, i.e. those who had to get new jobs would fail because of the lack of money in the economy. To account for this effect one should to use a generalized relationship as represented by the sum of (1) and (2):

π(t)+UE(t)= A1dLF(t-t1)/LF(t-t1)+B1dLF(t-t2)/LF(t-t2)+A2+B2 (3)

Equation (3) balances the change in labor force to inflation and unemployment, the latter two variables potentially lagging by different times behind the labor force change. Effectively, when t1≠0 or/and t2≠0, one should not link inflation and unemployment for the same year. The importance of this generalized relationship is demonstrated by Kitov (2007a) on the example of France.
One can rewrite (3) in a form similar to that of the Phillips curve, without any autoregressive terms, although:

π(t) = C1dLF(t-t1)/LF(t-t1)+C2UE(t+t2-t1)+C3 (4)

where coefficients C1, C2, and C3 should be better determined empirically despite they can be directly obtained from (3) by simple algebraic transformation. The rationale behind the superiority of the empirical estimation is the presence of high measurement noise in all original time series. In some places, (4) can provide a more effective destructive interference of such noise than does (3). Consequently, the coefficients providing the best fit for (3) and (4), whatever method is used, may be different. In this study we use relationship (4), but one should not consider it as an equation predicting inflation. It is rather a convenient form of the equation balancing inputs of all three variables with the labor force driving the other two. Moreover, inflation may actually lead unemployment, as it is found in the United States. Then inflation defined by (4) actually depends on some future readings of unemployment (Kitov, 2009a).
For the USA, there was no need to apply relationship (3) because corresponding monetary policies and other potential sources of disturbance do not change the natural partition of the change in labor force, as observed since the late 1950s. Coefficients in relationships (1) and (2) specific for the USA are as follows: A1=4, A2=-0.03, t1=2 years (DGDP as a measure of inflation), B1=2.1, B2=-0.023, t2=5 years.
For Japan, A1=1.31, A2=0.0007, t1=0 years (DGDP), and B1=-1.5, B2=0.045, t2=0 years (Kitov, 2007b). It is worth noting that B1 is negative and any decrease in the level of labor force or too weak growth would result in increasing unemployment. The change rate of labor force measured in Japan has been negative since 1999 and the measured inflation, DGDP and CPI, has been negative as well. There is no indication of a recovery to positive figures any time soon if to consider the decrease in working age population and participation rate as has been observed in Japan since the late 1990s.
For Germany, there exists a Phillips curve:

UE(t-1) = -1.50[0.1]DGDP(t) + 0.116[0.004]

with inflation lagging unemployment by one year. The goodness-of-fit is (R2=) 0.86 for the period between 1971 and 2006, i.e. during the period where data are available. Coefficients in (1) and (2) are as follows: A1=-1.71, A2=0.041, t1=6 years (CPI), and B1=2.5, B2=0.04, t2=5 years (Kitov, 2007d). Considering the presence of the same time lags before and after the reunification, but different coefficients, the case of Germany is an outstanding one. It demonstrates how deep are the socio-economic roots of the driving force behind inflation and unemployment. On the other hand, it is really difficult to imagine that the process of the transformation of the change in labor force into inflation takes six years. However, the lag of inflation behind the change in labor force allows a prediction at a six-year horizon with a very small RMSFE.
In Canada, A1=2.58, A2=-0.0043, t1=2 years (CPI) with R2=0.67, and B1=-2.1, B2=0.12, t2=0 years with (Kitov, 2007c). Therefore, the change in labor force and unemployment lead inflation by two years allowing a natural forecasting horizon of two years.
We have carried out a formal statistical assessment of the empirical linear lagged relationship (1) for the USA (Kitov, Kitov, Dolinskaya, 2007b). It has demonstrated that the pseudo out-of-sample RMSFE for CPI inflation at a two-year horizon for the period between 1965 and 2002 is only 0.8%. This value is superior to that obtained with any other inflation model by a factor of 2, as presented by Stock and Watson (1999, 2005), Atkeson and Ohanian (2001). This forecasting superiority is retained for shorter sub-periods with RMSFE of 1.0% for the first (1965-1983) and 0.5% for the second (1983-2002) segment. In the mainstream models of inflation, the turning point in 1983 is dictated by the inability to describe inflation process with one set of defining parameters. Therefore, special discussions are devoted to statistical, economic, and/or financial justification of the split and relevant change in parameters (see Stock and Watson, 2005). Our model denies the necessity of any change in the factors driving inflation in the US around 1983 or in any other point after 1960. Each and every inflation reading is completely defined by the change in labor force occurred two years before.

The boundary element method in economics
Kitov, Kitov, and Dolinskaya (2007a) introduced a simple but effective method to find an appropriate set of coefficients in (1) through (4). This method consists in the search of the best-fit between cumulative values and is similar to the boundary element method (BEM) in engineering and science, in its 1D form. The BEM reduces a set of linear (partial) differential equations, e.g. relationships (1) and (2), to a set of integral equations. The solution of the integral equations, as expressed in boundary integral form, is an exact solution of the original differential equations. In the case of relationship (1):

t0 ∫t01d[lnP(t)]dt =t0 ∫t01 (A1d[lnLF(t)]dt + t0 ∫t01 A2dt (5)

The solution of the integral equation (5) is as follows:

lnP│t0t01 = A1lnLF│t0t01 + A2t│ t0t01 + C (6)

where P(t) is the level of price (index) at time t (p(t)≡dP(t)/P(t)=dlnP(t)); t0 and t01 are the start and end time of the integration, respectively; and C is the free term, which ahs to be determined together with coefficients A1 and A2 from the boundary conditions: P(t0)=P0, P(t01)=P1, LF(t0)=LF0 , LF(t01)=LF1, where t=t-t1 is the time lagged by t1, i.e. by the lag of the change in price behind the change in labor force.
For 1D problems, we have fixed values as boundary conditions instead of boundary integrals. The number of boundary conditions in (6) is complete for calculation (or quantitative estimation, if there is no analytic solution) all involved coefficients, considering that, without loss of generality, one can always set P0=1.0 as a boundary condition. When estimated, these coefficients entirely define the particular solution of (6):

ln[P(t01)] = A1ln[LF(t0)/LF(t01)] + A2(t01-t0) + C (7)

on both boundaries, i.e. at t0 and t01, as well as over the entire time domain between t0 and t01. (It is presumed that LF(t) is a function of time known from measurements.) The estimation of all involved coefficients is the essence of numerical solution of 2D and 3D problems by BEM in scientific applications. In this study, a simple trial-and-error method is used as based on visual fit. Therefore, the residual between observed and predicted curves is not minimized in any metrics and a better OLS solution is likely to exist.
For solving problems (1) and (2) using (7) with an increasing accuracy, we can use a series of boundary conditions for subsequent years. As a rule, inflation in developed countries varies in a relatively narrow range and only rarely dives into the zone of negative growth rate. This makes it difficult to obtain reliable estimates of the involved coefficients from short time series, which is a characteristic feature of economic research. Our experience shows, that depending on the dynamics of inflation and the level of measurement noise in a given country, one needs from 30 to 50 readings to get a reliable solution of problems (1) or (2). (Japan is a brilliant example of a country with a long history of deflation, which makes the resolution of cumulative curves possible even for shorter time intervals.) Similar to many physical problems, the wider is the range of inflation change and lower is the noise level (i.e. the higher is signal to noise ratio) the shorter observation period is needed. A proper set of coefficients should make subsequent residuals between observed and predicted cumulative curves to be a stationary time series with decreasing relative (i.e. normalized to the attained cumulative value) errors. This is a consequence of high correlation in measurement errors for any variable with increasing level: over time, each annual reading is characterized by the same absolute error, but the cumulative change over decades, which is much larger that any annual step, is measured with the same absolute and falling in relative terms error. Compare this feature with famous tests for cointegration, where time series are differentiated with a significant decrease in signal-to-noise ratio and corresponding increase in measurement error, both absolute and relative. In physical terms, if a link between two variables does exist one should better use integral not differential approach.
Overall, solution (7) is the basis of the cumulative curve approach to estimate coefficients A1, A2, etc., in relationships (1) and (2). In terms of the boundary element method, the right hand side of (7) is the particular solution of the (ordinary) differential equation (1). Because t1≥0, the causality principle holds, and the independent function is known before the dependent one. The only principal difference with the standard BEM used in scientific applications is that the solution (7) is not a closed-form or analytic solution, as those in fluid dynamics, acoustics, and electromagnetism. It is the change in labor force in a given country, which may follow a quite exotic trajectory as related to demographic, social, economic, cultural, climatic, etc. circumstances. From (7), inflation in the country can be exactly predicted at a time horizon t1, and possibly evaluated at longer horizons using various projections of labor force (Kitov, Kitov, 2008a). As a logic consequence, there is no alternative way to predict inflation since it is etirely constrained by the change in labor force. At the same time, solution (7) may have infinite number of future trajectories.
It is a requirement that BEM is applicable to problems for which Green's functions can be derived, i.e. the functions describing the solution in the body between the boundaries. For example, fields in linear homogeneous media created by point (Dirac delta-function) sources. What does play the role of the Green function in the problem under consideration? The answer is obvious: ln[(LF(t)/LF(t0))] and (t-t0). A linear combination of these two functions comprises any particular solution of (3). In physical terms, there is a causal link between labor force and the combination of inflation and unemployment. However, the particular solutions of problems (1) and (2) are sensitive to the change in “physical” conditions in a given economy. When a central bank introduces a strict bound on inflation, both coefficients in (1) should change. Unemployment must react to compensate the deviation from the original relationship (4) and both coefficients in (2) must also change. However, the generalized relationship holds as long as the economy reproduces all economic and social links between its agents. Apparently, there are circumstances in which the generalized relationship does not work any more. Moreover, at some point in the past, there was no generalized relationship between labor force, inflation and unemployment. At some point in the future, current relations will not hold any more replaced by some new economic laws.
There is a variety of numerical methods for the estimation of coefficients in boundary problem (7), which are the workhorse of the BEM. For our purposes, even the simplest visual fit between observed and predicted cumulative curves over 40 to 50 years is an adequate method for the estimation. Thus, all coefficients estimated in this study are likely to be slightly biased in sense of OLS, but still provide a much better overall fit than any set of coefficients, which can be obtained by OLS (or even the VAR technique) from dynamic data.
In order to demonstrate the power of the cumulative curve concept we applied the method to Austria and the USA (Kitov, Kitov, Dolinskaya, 2007ab). Figure 1 (right panel) displays the observed cumulative curve in Austria and that obtained from the particular solution (7) of equation (1):

π(t) = 1.25dLF(t)/LF(t) + 0.0075, t>1986
π(t) = 2.0dLF(t)/LF(t) + 0.033, t≤1986

where π(t) is the GDP deflator reported by national statistics, with the boundary conditions set for 1960 and 2003 (Kitov, 2007a): Π(1959)=0; Π(2003)=1.637; LF(1959)=2,364,200; LF(2003)=3,424,900, where Π(2003)=Σπ(ti), i=1960,…, 2003.
These boundary conditions evolve with calendar year, but since the predicted cumulative curve is always close to the observed one, coefficients in (4) do not fluctuate much. It is possible to get the best-fit coefficients using the full set of estimations for all possible combinations of the start and end years. However, this is not the purpose of the study, which demonstrates that the concept linking inflation and unemployment to the level of labor force is an adequate one even in its simplest realization.
The boundary integral equation method allows effective noise suppression, both the one induced by the discretization of continuous functions and that related to measurement errors. The superior performance of the boundary integral method is demonstrated by Figure 2, where the differences between predicted and observed time series are shown. As one can judge from the left panel of the Figure, the difference between the cumulative curves does not deviate much from the zero line.
The measured dynamic series of π(t) and that predicted from the dLF(t)/LF(t) in the left panel of Figure 1 contain 47 observations and are essentially non-stationary. According to the Phillips-Perron unit root test, z(ρ)=-7.1 for the measured time series and z(ρ)=-5.29 for the predicted one. The 1% critical value is -16.63 and the 5% critical value is -13.17. The augmented Dickey-Fuller test gives z(t)=-1.87 and -1.53, respectively, with the 1% critical values -3.61 and the 5% critical value of -2.94. Therefore, one can not reject the null hypothesis of the presence of unit roots in both time series. As shown below, the first differences of both series have no unit roots, and thus the original series are essentially integrated of order 1, I(1), and it is necessary to test them for cointegration before using linear regression analysis.
The Phillips-Perron test shows that the difference between the measured and observed variables is characterized by z(ρ)=-34.37, with the 1% critical value of -18.63. The Dickey-Fuller test gives z(t)=-5.41, with the 1% critical value of -3.61. Therefore, both tests reject the presence of unit roots in the difference and, thus, it is integrated of order 0. This finding evidences in favor of the hypothesis that the observed and predicted inflation are cointegrated because the difference is similar to the residual in the Engle-Granger (1987) two-step method. The only distinction is that the residual of a linear regression is replaced with the difference of the measured and predicted time series. This is a insignificant deviation, however, because there exists a linear combination of two I(1) series, which is proved to be a I(0) series. For that reason, we do not follow up the original Engle-Granger method in this study. It should give no other result except the absence of unit roots in the residual. Otherwise, it is a flawed method.
The Johansen procedure tests for cointegration and defines cointegration rank at the same time. For two variables, cointegration rank 1 means the existence of an equilibrium long-term relation. For Austria, cointegration rank is 1 with trace statistics of the Johansen test of 2.80 compared to the 5% critical value of 3.76. Thus, the null hypothesis of the existence of a cointegrating relation cannot be rejected.
From this analysis one can conclude that there exists a cointegrating relation between the observed inflation and that predicted from the change in labor force and unemployment using relationship (4) with the empirical coefficients derived above. Therefore, the case of Austria validates the model obtained by the method of cumulative curves in econometric terms and one can use the long-term causal relationships as empirical relations describing the Austrian economy as a physical system. The coefficients obtained by simple fit of the cumulative curves provide a linear relation between the inflation and the change in labor force with an I(0) process as the residual. On the contrary, the above tests for cointegration are based on an extraordinary sophisticated assumptions and sets of simulated data.
Now the existence of a cointegrating relation between the observed and predicted inflation is proved and one can use standard statistical methods for the estimation of predictive power of the model. A simple linear regression gives R2=0.82 and standard (RMS) error of 0.9% for the years between 1960 and 2003. Hence, the predicted series explains 82% of the variability in the measured one and the prediction uncertainty is on the level of measurement uncertainty, with the range of inflation change between 9.5% and -0.4%. It is also instructive to build a VAR model for the observed and predicted inflation in Austria, which uses autoregressive properties of both series. With the largest time lag of 4, the VAR model is characterized by RMSE of 1.1% for the measured series, i.e. by a larger error than that obtained by OLS. In any case, the uncertainty is very low according to the standards dictated by conventional models.

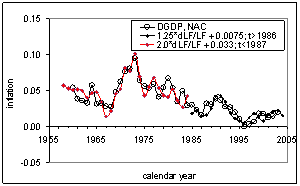

Figure 1. Observed and predicted inflation in Austria. Left panel – annual (dynamic) curves. Right panel: cumulative curves.
(in this post, most of figures are skipped- see original paper)
Figure 2. Left panel: The difference between the observed and predicted inflation (i.e. the prediction error) presented in Figure 4. The differnce presented for the dynamic and cumulative curves. Right panel: The difference for the cumulative curves normalized to the atteained level of cumulative inflation. Notice the gradual decrease in the relative error through time.
The cumulative curves have another implication. The long-term behavior of the observed and predicted curves implies that the former can be replaced with the latter without any loss of accuracy. Kitov (2007a) demonstrated that high prediction accuracy for both the dynamic and cumulative series is also achievable when only the change in labor force is used. Corresponding RMSE are 0.01 and 0.016 for the period between 1960 and 2003, as shown in Figure 2 (left panel), which also demonstrates that relative deviation between the measured and predicted cumulative curves, i.e. the difference divided by the attained level of cumulative inflation, gradually decreases (right panel). Both differences in the left panel of Figure 2 are integrated of order 0, as the Phillips-Perron (PP) and the Dickey-Fuller (DF) tests show. Specifically, the PP test gives z(ρ)=-50.6 and -19.9 for the dynamic and cumulative series with the 1% critical value of -18.8; and z(t)=-6.96 and -3.54 with the 1% critical value of -3.63 (5% critical value is -2.95). The DF test gives z(t)=-6.97 and -3.56 with the 1% critical value of -3.63. Therefore, one can reject the null the series contain a unit root, i.e. both differences are stationary processes. The difference between the cumulative curves is an I(0) process and is a linear combination of two I(2) processes! This is the expression of the power of the boundary element method in science – integral solutions, when exist, suppress noise very effectively by destructive interference.
Thus, the replacement of the observed curve with the predicted one is the solution of the original ordinary differential equation. Such a replacement does not compromise the accuracy of cumulative inflation growth, i.e. the overall change in price over longer periods. Imagine, there is no need to measure inflation – just count the number of people in labor force! It is also applicable to the prediction of the price evolution at longer horizons – one has to project the growth in labor force.
We have carried out a similar analysis for the United States. Figure 3 compares dynamic and cumulative curves of measured inflation to that predicted from labor force. The best visual fit of the cumulative curves provides the following relationship:

π(t) = 4.5dLF(t-2)/LF(t-2) - 0.031

where π(t) is the CPI inflation. The period covered by this relationship is between 1965 and 2006. Figure 4 depicts the differences between the observed and predicted curves, both the dynamic and cumulative ones, for the same period. Despite the best fit between the cumulative curves there is a constant term in both differences. This is an important specification of the following unit root tests.
Both differences in Figure 4 are integrated of order 0, as the Phillips-Perron (with maximum time lag 4) and the Dickey-Fuller (DF) tests show. Specifically, the PP test gives z(ρ)=-38.44 and -14.71 for the dynamic and cumulative difference with the 1% critical value of -12.54; and z(t)=-5.94 and -3.54 with the 1% critical value of -2.63 (5% critical value is -1.95). The DF test gives z(t)=-5.95 and -3.10, respectively, with the 1% critical value of -2.63. Therefore, one can reject the null that the series contain a unit root, i.e. both differences are stationary processes. Having the stationary difference between the cumulative curves one can suggest that the dynamic times series, which are obtained from the cumulative curves, are also cointegrated. In other words, there exists a linear combination of the dynamic series which creates an I(0) process.

Figure 3. Observed and predicted (CPI) inflation in the United States. Left panel – annual rate curves. Right panel: cumulative curves.

Figure 4. The difference between the observed and predicted inflation presented in Figure 3.
We have analyzed the performance of the cumulative curve method for two countries. Both examples demonstrate that one can easily obtain coefficients of linear lagged relationship between inflation and the change in labor force, which provide excellent prediction for both dynamic and cumulative inflation. As in physics, the success of this method can be only rooted in the existence of a causal link between these macroeconomic variables. And similar to the situation in the hard sciences, there is no ultimate proof of the existence of the link - only statistical evidences obtained from numerous measurements with increasing accuracy. Hence, to make the link more reliable one must extend relevant data set – both over time and across other developed economies. Section 3 adds on four West European countries.

Unemployment in European countries

The linear and lagged relationships between inflation, unemployment, and the change in labor force have been demonstrating an excellent performance for the largest (the United States, Japan, Germany, and France) and smaller (Austria and Canada) world economies since the early 1960s. These relationships are expected to be successful for other developed economies with similar socio-economic structure. European countries provide a variety of features related to inflation and unemployment as one can conclude from the economic statistics provided by the OECD. This diversity includes periods of very high inflation accompanied by high unemployment, periods of low inflation and unemployment, and other combinations complicated by transition periods. It is a big challenge for any theory of inflation to explain the diversity of empirical facts.

Austria
It is convenient to start with Austria for four reasons. First, there are several alternative data sets for all involved variables, which demonstrate the uncertainty of measurements as related to definition. Second, we have already derived a model for Austria for the period between 1960 and 2003 (Kitov, 2007a), which is also discussed in Section 2. Recent readings (between 2004 and 2008) and alternative data sets allow validation of the previous model. Third, the length of data set for Austria is around 50 years long what made it possible to test the model for cointegration. Other European countries is this study are characterized by shorter periods of measurement what effectively makes any test for cointegration unreliable. Fourth, it was found that the Austrian data sets have a major break in 1986, when new units of measurements were introduced by revisions to current definitions. The OECD (2008) provides the following description of relevant breaks:

Series breaks: Employment data from 1994 are compatible with ILO guidelines and the time criterion applied to classify persons as employed is reduced to 1 hour. Prior to 1994, armed forces were included in the civilian labour force, in services. In 1987, a change occurred in the definition of the unemployed where non-registered jobseekers were classified as unemployed if they had been seeking work in the last four weeks and if they were available for work within four weeks. In previous surveys, the unemployment concept excluded most unemployed persons not previously employed and most persons re-entering the labour market.

Therefore, the model for Austria is an instructive one and evidences that there were no structural breaks in terms of the change in underlying economic processes, but rather new measurement units were used. (Same as a country would shift from miles per hour to kilometers per hour.) Therefore, the relationships derived for the period before 1986 should be scaled to fit new units.
The model and its performance have been described and tested in Section 2 and in several papers. So, there is no harm to skip many formal details in describing the same procedures for individual cases and to focus on empirical results represented in graphical form. Scatter plots and time history curves bring most valuable information on amplitude, timing, scatter of the involved variables and the difference between observed and predicted time series. Generally, graphical representation is more informative than long tables.
Figure 5 displays several time series for unemployment and the change rate of labor force obtained according to different definitions: AMS (Arbeitsmarktservice - http://www.ams.at/), NAC (national accounts - http://www.statistik.at/), Eurostat, and OECD. A remarkable feature in both panels of Figure 5 is a large difference between amplitudes of the curves, otherwise evolving synchronously. Therefore, it is possible to scale the curves. The difference between the curves could serve as a conservative estimate of the uncertainty in relevant measurements, i.e. as a proxy of the difference between measured and true values of the studied variables. Specifically, one can compare the dLF/LF curves near 1975, 1985, 1995, and 2005. There are spikes in the OECD and Eurostat curves, which not present in the NAC curve. Usually, such spikes manifest a step-like revision to population controls or the introduction of new definitions. All in all, the modelling of unemployment and inflation using the dLF/LF curves in Figure 5 has some room for the deviation between predicted and observed curves as associated with measurement errors. Figure 6 depicts three time series with two measures of inflation rate: CPI inflation reported by the national statistical agency and GDP deflator reported by the OECD and Eurostat. The difference between the latter two measures is so large because they count nominal and real GDP in local currency and Euros (using current exchange rate).

Figure 5. Unemployment rate (left panel) and the rate of labor force change (right panel) in Austria according to various definitions: NAC and AMS - national definition, Eurostat and OECD. Variations in the variables are a crude approximation of the uncertainty in relevant measurements.
Figure 7 demonstrates the accuracy of the generalized model (4) in prediction of inflation. This model is similar to that described in Section 2 and also has a break in 1986, but it uses different measures of labor force and unemployment (both AMS). As a consequence, empirical coefficients are also different, except fixed one: C2=-1.0; C1=1.1 and C3=0.068 before 1986; C1=0.8 and C3=0.077 after 1986. These coefficients are obtained using the cumulative curve method, as shown in the right panel of Figure 7.
For Austria, there is no need to distinguish between unemployment and inflation. The predictive power of the generalized model allows an accurate forecast for both macroeconomic variables from projections of labor force. The better is the projection, the higher is the accuracy.

Figure 6. Three definitions of the rate of price inflation in Austria: GDP deflator (DGDP) - national currency and Euro, and CPI inflation.

Figure 7. Prediction of GDP deflator in Austria using the generalized model. Left panel: the rate of price inflation . Right panel: Cumulative inflation. (See details in the text.)

Italy
Retaining the above developed approach to the presentation of data and empirical model, Figure 8 displays two measures of unemployment and the change rate of labor force in Italy. First measure is introduced by national statistics and second is estimated according to the approach developed in the United States. All time series are available through the US Bureau of Labor Statistics (http://www.bls.gov/data/). The difference between the curves is obvious. In contrast to Austria, the unemployment curves cannot be so easily scaled, i.e. their cross-correlation is lower. Moreover, it seems that the national definition was replaced by the US one near 1993. This assumption is supported by the change rate of labor force having a large spike in the same year, the spike being a well-known sign of a large revision to definitions (OECD, 2008):

Series breaks: In October 1992, changes were introduced in the Household Labour Force Survey concerning the lower age limit of the active population (from 14 to 15 years old), the definition of unemployment, the population estimates, the estimation procedure and the imputation procedure. These changes resulted in a reduction in level estimates for employment and unemployment. In January 2004, major changes were introduced such as: the passage to a continuous survey, the implementation of CAPI/CATI instead of PAPI for interviews, better adherence to the international definition of employment, the change of the age limit in the definition of the unemployed (74 years old), and the data were revised back till the third quarter 1992.


Figure 8. Unemployment rate (left panel) and the rate of labor force change (right panel) in Italy according to national definition (NAC) and the definition adopted in the US.
In Figure 9, the observed unemployment is compared to that predicted from the change in labor force. Using only visual fit between the dynamic curves, we have estimated the coefficients in (2) for Italy: B1=3.0, B2=0.085, and t2=11 (!) years. Hence, an increase in labor force causes a proportional increase in unemployment with a factor of 3. The original time series dLF/LF is very noisy and thus is smoothed by a five-year moving average, MA(5). The right panel in Figure 9 displays a scatter plot - the measured UE vs. the predicted one, a linear regression line, and corresponding equation. The slope of the regression line is 0.96 (a slight underestimation of the slope results from the uncertainty in the independent variable) and R2=0.92. So, the predicted series explains 92% of the variability in the observed one.


Figure 9. Observed and predicted unemployment in Italy. The prediction horizon is 11 years. Due to large fluctuations associated with measurement errors in the labor force we are using centered MA(5) for the prediction, which reduces the horizon to 9 years. Goodness-of-fit (R2=) 0.92 for the period between 1973 and 2006, with RMSFE of 0.55%. The unemployment should start to increase in 2008.
As a rule, smoothing by MA(5) is an operation introducing a high bias in time series due to increasing autocorrelation. However, Italy is an exceptional economy with an eleven-year lag of unemployment behind the change in labor force. This lag is twice as large as in Germany and the largest among all studied countries. What kind of social and economic inertia should be involved in such a long delay of reaction? In any case, the smoothing with MA(5) is an adequate and accurate procedure for the prediction of unemployment at 9-year horizon in Italy with RMSFE of only 0.55% for the period between 1973 and 2006. This small RMSFE is associated with a wide range of change in the unemployment from 5.4% in 1974 to 12% in 1999. Together with the extremely large forecasting horizon, such uncertainty allows a decisive validation of our model in the next 9 years. One can expect that unemployment in Italy will be growing since 2008 and will reach ~11.4% [±0.6 %] near 2012. After 2012, unemployment in Italy will likely start to descend.

The NetherlandsFor the Netherlands, two different time series are available for unemployment and labor force – according to national (NAC) definition and the US concept. Two measures of inflation are reported by the OECD. Figures 10 and 11 display all the involved series, which have different length but all are in the range between 1960 and 2006. The difference in the measures of labor force is outstanding, especially around 1980 and 1990. One should not tolerate such a discrepancy. Otherwise, no quantitative analysis is possible and economics will never have a chance to join the club of the hard sciences. The OECD (2008) provides the following information on the changes in definitions in the Netherlands:

Series breaks: The break in 1991-92 is due to the introduction of new definitions in the survey. The implementation of a continuous survey also caused a break in series between 1986 and 1987. The increase in employment figures is due to the survey collecting more information on persons working fewer weekly hours (less than 20 hours a week). Between 1982 and 1983, the break, mainly in the unemployment series, is due to the implementation of the Labour Force Survey.


Figure 10. Unemployment rate (left panel) and the rate of labor force change (right panel) in the Netherlands according to national definition (NAC) and the definition adopted in the US.

Figure 12 corroborates the presence of a reliable Phillips curve in the Netherlands, at least between 1970 and 2001; the DGDP time series is taken from the OECD data set and the unemployment readings obey the national definition. It is worth noting that the unemployment is three years ahead of the inflation. Therefore, one can predict inflation in the Netherlands using measured unemployment, but not vice versa. Results of linear regression of the unemployment on the inflation are shown in the right panel: R2=0.79 for the entire period between 1971 and 2004, with RMSFE at a 3-year horizon of 1.6%. The measured unemployment changed from 0.9% (!) in 1971 to 10.2% in 1983. If to exclude three recent points from the unemployment curve, RMSFE=1.3% and R2=0.89. The year of 2001 is likely to be associated with a break in measurement units as Figures 10 and 11 show, because of the introduction of new statistics.
The unemployment rate and the change in labor force both are three years ahead of the inflation. Thus, it is natural to use the generalized model to predict inflation. In the left panel of Figure 13 we present the observed GDP deflator and that predicted from the labor force for the years between 1971 and 2004. Because of high fluctuations in the labor force time series (see Figure 10) the predicted curve is smoothed with MA(5). Finally, the right panel in Figure 13 evaluates the predictive power of the generalized model. The agreement is excellent with a possibility to predict at a three year horizon, when accurate measurements of unemployment and labor force will be available. In a sense, the prediction from labor characteristics has an uncertainty similar to that associated with the definition of inflation – compare the curves in Figures 11 and 13.

Figure 11. Two measures of inflation in the Netherland; GDP deflator and CPI inflation. Both are reported by the OECD.


Figure 12. Phillips curve in the Netherlands.

So, one might consider the case of the Netherlands as an evidence in favor of the generalized model. One more developed country reveals the presence of a long-term equilibrium link between inflation, unemployment, and the level of labor force. The goodness-of-fit between the observed and predicted time series in the right panel of Figure 13 is (R2=) 0.77 for the period between 1980 and 2006. We do not conduct tests for cointegration because the samples are small for any robust inferences.

Figure 13. Inflation in the Netherlands (DGDP and CPI) as a function of the change in labor force and unemployment.

Sweden
For Sweden, two different versions of unemployment rate and labor force are available – the NAC and US ones. Figure 14 displays the evolution of all series between 1960 and 2006. Surprisingly, the curves are very close with only one visible step in 1993, as reported by the OEDC (2008):

Series breaks: In 1993 a new reference week system and new estimation procedures were introduced. Also, the definition of unemployed was adjusted so that it followed the recommendations of the ILO more closely. In the new reference week system, the Labour Force Survey measures all weeks during the year as opposed to two weeks per month in the older system. In 1987 a new questionnaire was introduced resulting in the presentation of additional variables, and in the establishment of dependent interviewing. From 1986 to 2006, data refer to all persons aged 16 to 64 years; previously they referred to all persons aged 16 to 74 years. As from October 2007 the data cover age group 15 to 74 again.

The Phillips curve in Sweden is not a reliable link between unemployment and inflation, as Figure 15 shows. The goodness-of-fit is only 0.67 for the years between 1971 and 2006. The unemployment curve does not match the fluctuations in the inflation curve. It is likely that the definition of unemployment before 1987 was not adequate – it essentially produced a straight line from 1960 to 1980.
It seems that the definition of labor force has the same problem as the definition of unemployment, as the left panel of Figure 16 demonstrates. The observed curve diverge after 2001 from that predicted using labor force only. (Same problem as with the Netherlands.) Otherwise, the agreement is good. As in many European countries, the change in labor force leads the change in unemployment; the former is two years ahead of the latter in Sweden.
The generalized model links all three involved macroeconomic variables much better than individual relationships. The right panel of Figure 16 evidences a reliable description of the inflation by the unemployment and the change in labor force. Because of fierce fluctuations in the inflation and labor force moving average MA(5) and MA(7) are applied to the original series. In Sweden, an increase in the level of labor force reduces the rate of unemployment and pushes inflation up, as coefficients in individual relationships between relevant variables shows.

Figure 14. Unemployment rate (left panel) and the rate of labor force change (right panel) in Sweden according to national definition (NAC) and the definition adopted in the US.


Figure 15. The Phillips curve in Sweden.


Figure 16. Left panel: Prediction of unemployment by the change in labor force. Right panel: The generalized model in Sweden: inflation as a function of the change in labor force and unemployment).

Switzerland
The OECD reports measurements of unemployment in Switzerland only from 1991, as Figure 17 depicts. The BLS does not provide unemployment readings for this country at all. This makes the construction of a generalized model meaningless at this point in time. Longer observations of labor force (right panel, Figure 17) and inflation (Figure 18) are available, however. Apparently, the labor force series has two breaks: one in 1974 of unknown nature and one in 1991, as the OECD (2008) informs:

Series breaks: From 1998, data are adjusted in line with the 2000 census. Prior to 1991, data refer only to persons who are gainfully employed at least six hours per week.

Figure 17. Unemployment rate (left panel) and the rate of labor force change (right panel) in Sweden according to national definition (NAC) and the definition adopted in the US

Figure 18. Two definitions of the rate of price inflation in Switzerland: GDP deflator and CPI inflation according to OECD definition.

The link between inflation and labor force also has a break around 1987, as Figure 19 depicts. Linear regression of the observed series on the predicted one is characterized by slope 0.74, free term 0.003, and R2=0.82. According to well-know problem with OLS, the slope is underestimated. Otherwise, the agreement is excellent. We did not use the cumulative curves for the estimation of coefficients in (1) for Switzerland since corresponding time series are not long enough to provide a robust estimate. On the other hand, the original inflation curve heavily oscillates, and one needs only to fit the peaks of the oscillations in order to find appropriate coefficients in (1), as shown in the Figure.


Figure 19. Left panel: The rate of CPI inflation in Switzerland as predicted by the generalized model with a structural break neat 1987 related to the change in measuring units. Notice that the predicted series is smoothed with MA(3). Right panel: Linear regression of the data in the left panel.
The United States
Three years ago we presented a prediction of unemployment at a six-year horizon (Kitov, 2006ab). Despite the US is not a European country, this is a good opportunity to extend the prediction by four new readings and check the accuracy of the previous prediction. There are two possibilities to predict unemployment in the USA – using the dependence on the change in labor force and the generalized model. Figure 20 and 21 displays pertinent dynamic and cumulative curves with their equations. As predicted, the measured unemployment has been decreasing since 2004. The accuracy of the forecast increases when the measured and predicted curves are smoothed with MA(5) and MA(3), respectively. This is the effect of suppression of measurement noise by destructive interference. Considering the lag of six years (actually 22 quarters) such smoothing does no harm to the out-of-sample prediction.


Figure 20. Prediction of unemployment USA from the change in labor force.
The second half of 2008 and the beginning of 2009 are characterized by a unprecedented fast growth in unemployment (not seasonally adjusted), from 5.2 % in May 2008 to 8.9% in February 2009. The predicted curves in Figures 20 and 21 do not show any sign of so high rate in the long-run. Therefore, both models predict that the unemployment should return to the level ~5% in near future.
Previously, we made a prediction of unemployment at a longer horizon using various projections of labor force. It is time to update the forecast and to check whether one should expect the transition to a deflationary period since 2012. Figure 22 presents a number of prediction curves with data borrowed from the Congressional Budget Office (2004). According to our model, deflation in the United States is inevitable.

Figure 21. Prediction of unemployment in the USA by the generalized model.

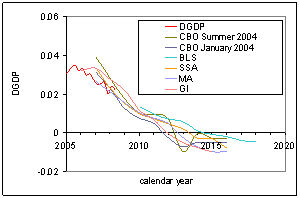

Figure 22. The evolution of GDP deflator predicted using various projections of labor force. Sources: Congressional Budget Office; Department of Labor, Bureau of Labor Statistics (BLS); Social Security Administration (SSA); Macroeconomic Advisers (MA); Global Insight (GI).
ConclusionWe have presented an empirical model explaining the evolution of inflation and unemployment in developed countries as driven by the change in the level of labor force. The model was previously tested on data from the biggest economies - the United States, Japan, Germany, and France. Smaller economies of Austria and Canada also support the existence of the link.
In order to validate the model and facilitate the procedure of the estimation of the model coefficients we have introduced and tested a new technique – the method of cumulative curves. This method is a direct analog of the boundary element methods extensively used in engineering and science. Using Austria and the United States as examples, we have demonstrated that cumulative curves provide particular solutions of the model equations and guarantee the residual of the model to be a I(0) process. In other words, the difference between measured and predicted cumulative curves, both I(2) processes, is a stationary process. This is strong evidence in favor of the existence of a causal link between labor force and the pair inflation/unemployment.
Instead of repeating major and minor conclusions made in our previous papers we would like to summarize all results obtained so far as a complete list of empirical models derived for developed countries (in alphabetic order):

Austria:
π(t) = 1.2dLF(t)/LF(t) - 1.0UE(t) + 0.066; 1965 ≤ t ≤ 1986
π(t) = 0.9dLF(t)/LF(t) - 1.0UE(t) + 0.0074; t ≥ 1987
Canada:
UE(t) = -2.1dLF(t)/LF(t) + 0.12
π(t) = 2.58dLF(t-2)/LF(t-2) - 0.043
π(t) = 3.8dLF(t-2)/LF(t-2) + 0.79UE(t-2) - 0.098
France:
π(t) = 4.0dLF(t-4)/LF(t-4 ) - 1.0UE(t-4)+0.095
Germany:
π(t) = -1.71dLF(t-6)/LF(t-6) + 0.041
UE(t) = 2.5dLF(t-5)/LF(t-5) + 0.04
UE(t-1) = -1.50π(t)+ 0.116; t>1971
π(t) = -0.3dLF(t-6)/LF(t-6) + 0.59UE(t-1) + 0.072

Italy:
UE(t) = 3.0dLF(t-11)/LF(t-11) + 0 .085; t>1968

Japan:
UE(t) = -1.5dLF(t)/LF(t) + 0 .045 π(t) = 1.77dLF(t)/LF(t) - 0.0035
The Netherlands:
π(t) = 3.5dLF(t-3)/LF(t-3) - 0.03π(t) = 3.5dLF(t-3)/LF(t-3) - 0.48UE(t-3) + 0.006

Sweden:
π(t) = 1.15UE(t) + 0.11
UE(t) = -6.0dLF(t-2)/LF(t-2 + 0 .069
π(t) = 5.0dLF(t-2)/LF(t-2) + 0.044π(t) = 5.0dLF(t-2)/LF(t-2) – 0.5UE(t) + 0.006

Switzerland:
UE(t) = -1.0π(t) + 0.04
π(t) = 2.0dLF(t-2)/LF(t-2) + 0.005 ( t ≤ 1986)
π(t) = 1.1dLF(t-2)/LF(t-2) + 0.055 (t ≥ 1987)
The United States:UE(t) = 2.1dLF(t-5)/LF(t-5) - 0.023
π(t) = 4.0dLF(t-2)/LF(t-2) - 0.03

These developed countries produce a larger portion of the worlds’ GDP. Most of these countries are situated in Western Europe. They had various economic and social histories in the 20th century and in the first decade of the 21st century. Nevertheless, they all demonstrate similar links between inflation, unemployment and labor force. Currently, empirical models for Australia, Spain, and the United Kingdom are under construction.


References
Atkeson, A., Ohanian, L.E., (2001). Are Phillips curves useful for forecasting inflation?, Federal Reserve Bank of Minneapolis Quarterly Review 25, 2-11.

Banque de France, (2004). Definition of the single monetary policy. Retrieved January 10, 2007 from http://www.banque-france.fr/gb/instit/sebc/1d.htm

Congressional Budget Office, (2004). CBO's Projections of the Labor Force, http://cbo.gov/ftpdocs/58xx/doc5803/09-15-LaborForce.pdf

Engle, R., Granger, C., (1987). Cointegration and error correction: representation, estimation, and testing. Journal of Econometrics, 55, 251-276

Johansen, S, (1988). Statistical analysis of cointegrating vectors. Journal of Economic Dynamics and Control, 12, 231-254

Kitov, I., (2006a). Inflation, unemployment, labor force change in the USA, Working Papers 28, ECINEQ, Society for the Study of Economic Inequality, http://www.ecineq.org/milano/WP/ECINEQ2006-28.pdf

Kitov, I., (2006b). Exact prediction of inflation in the USA, MPRA Paper 2735, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/2735/01/MPRA_paper_2735.pdf

Kitov, I., (2007a). Inflation, Unemployment, Labor Force Change in European countries, in T. Nagakawa (Ed.), Business Fluctuations and Cycles, pp. 67-112, Hauppauge NY: Nova Science Publishers

Kitov, I., (2007b). Exact prediction of inflation and unemployment in Japan, MPRA Paper 5464, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/5464/01/MPRA_paper_5464.pdf

Kitov, I., (2007c). Exact prediction of inflation and unemployment in Canada, MPRA Paper 5015, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/5015/01/MPRA_paper_5015.pdf

Kitov, I., (2007d). Exact prediction of inflation and unemployment in Germany, MPRA Paper 5088, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/5088/01/MPRA_paper_5088.pdf

Kitov, I., (2009a). The anti-Phillips curve, MPRA Paper 13641, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/13641/01/MPRA_paper_13641.pdf

Kitov, I., (2009b). Mechanical model of personal income distribution, MPRA Paper 13422, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/13422/01/MPRA_paper_13422.pdf

Kitov, I., Kitov, O., (2008a). The driving force of labor force participation in developed countries, Journal of Applied Economic Sciences, Spiru Haret University, Faculty of Financial Management and Accounting Craiova, vol. 2(3(5)_Fall), pp. 203-222.

Kitov, I., Kitov, O., (2008b). The driving force of labor productivity, MPRA Paper 9069, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/9069/01/MPRA_paper_9069.pdf

Kitov, I., Kitov, O., Dolinskaya, S., (2007a). Inflation as a function of labor force change rate: cointegration test for the USA, MPRA Paper 2734, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/2734/01/MPRA_paper_2734.pdf

Kitov, I., Kitov, O., Dolinskaya, S., (2007b). Relationship between inflation, unemployment and labor force change rate in France: cointegration test, MPRA Paper 2736, University Library of Munich, Germany, http://mpra.ub.uni-muenchen.de/2736/01/MPRA_paper_2736.pdf

OECD, (2008). Notes by Country, http://www.oecd.org/dataoecd/35/3/2771299.pdf

Stock, J.H., Watson, M.W., (1999). Forecasting inflation, Journal of Monetary Economics, 44, pp. 293-335.

Stock, J.H., Watson, M.W., (2005). Has inflation become harder to forecast?, manuscript, Harvard University, http://ksghome.harvard.edu/~JStock/pdf/qepd_sw_jmcb_submission_1.pdf
